Alpha Beta Pruning
What is Alpha Beta Pruning
Important
It is a type of search time minimizing method that prunes forests or trees such that certain branches of nodes are not considered anymore by following a specific algorithm
The rules and constraints are as follows:
- There are two variables to be considered, alpha (
) which represents the max value and then beta ( ) which represents the minimum value - Alpha starts with -∞
- Beta starts with +∞
- Each layer with have the tag max or min in it
- If the layer specifies max, then the max variable will change and check the node below it to see if a value is greater than it
- If the layer specifies min, the min variable will change and check the node below it to see if a value is less than it
- If a min layer below has a value smaller than the min value already at that layer, it will change that value. Vice versa for a max layer, if there is a value bigger than the layer below it, it will change into it
- If alpha
beta ( ), then whatever node branch was not visited after making this statement will be pruned

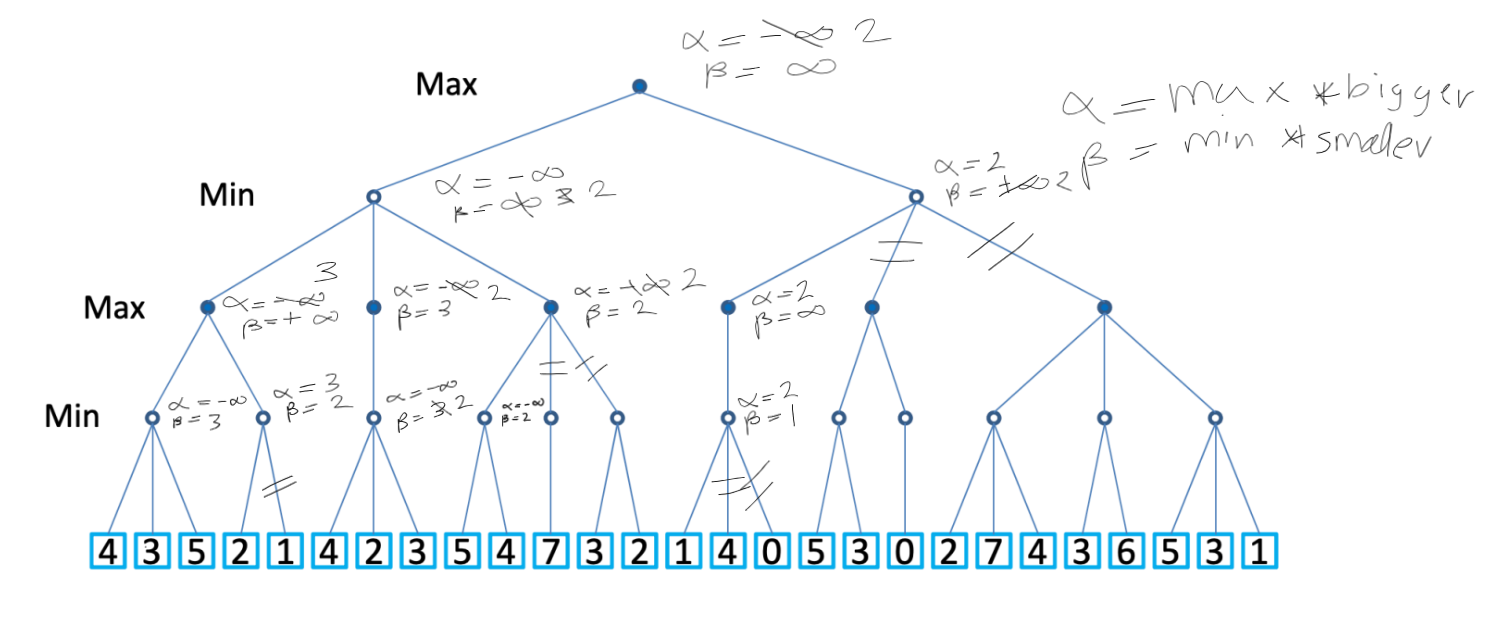

Take the following figure for example to see how this logic is implemented:
To conclude, what makes an alpha-beta pruning algorithm efficient is the fact that it can prune off branches that it does not need based on the simple logic "
